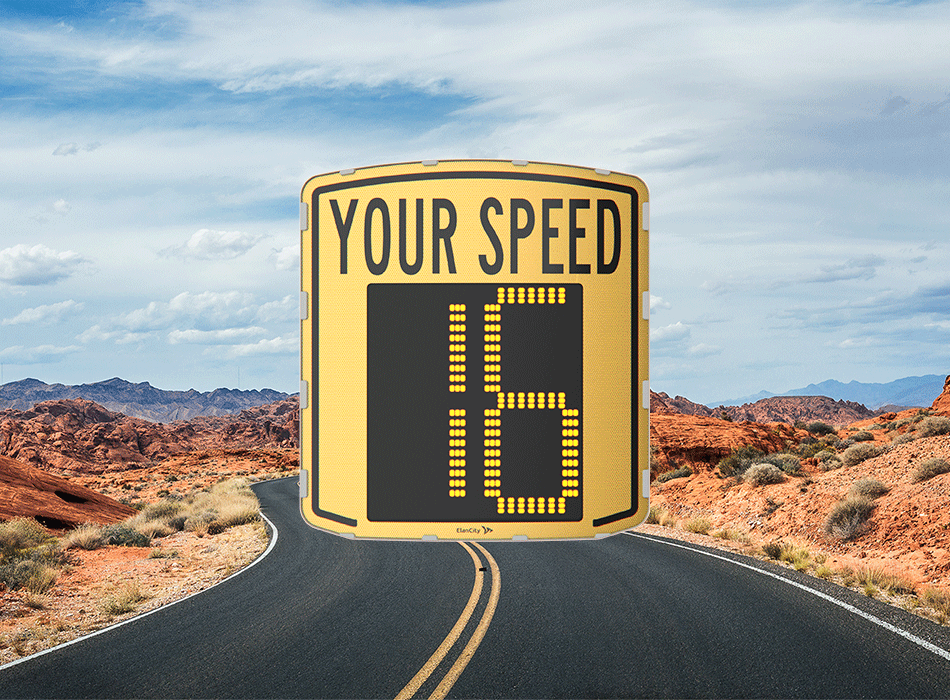

Speed Radar Sign EVOLIS XL

EVOLIS XL: The Biggest LED Speed Radar Sign

evolis-16

The EVOLIS XL speed radar sign was designed for maximum impact on drivers with a massive sign that’s visible from a great distance away. Reduce speed by 25% – even on high-speed roads and major highways.

  • XL format: Highly visible 18″ speed digits designed for maximum visual impact on drivers even on high-speed roads.
  • LED display: Personalized messages and long-distance scope to guarantee a strong influence on drivers.
  • High data collection: With a bidirectional traffic data collection capacity, managing traffic has never been easier.

Do you have a question? Need a quote?

The EVOLIS XL Speed Radar Sign in action

With its large LED display and XL size, this speed radar sign is even more effective than other standard speed indicator signs. After being alerted to their current speed, drivers have been shown to reduce speed by 25%. The proof is in the numbers, with over 30,000 models installed worldwide!

The XL version of the radar speed sign also rhymes with autonomy and durability with our solar-powered version.

The EVOLIS XL RSS complies with MUTCD standards for digit height, long-distance visibility, flash rate, the size and weight of the casing, the size of the words ‘YOUR SPEED,’ and the color of the LEDs.

sam-wlac.bbc50291-1

Approved U.S. Government Vendor
CAGE CODE 8MC95

mutcd-compliant

MUTCD Compliant
Radar Speed Signs

fcc-logo-black-2020-large

FCC Certified for U.S. Compliance

logo-iso-9001

Certified Quality System
ISO 9001:2015

Radar Speed Sign specifications

Display Specifications
Detection
Casing
Configuration
Traffic Data Analysis
Power Supply

Speed Display

Speed digitsHeight 18″
“YOUR SPEED” legend6.1″ Highway-Gothic font
LEDsUltra-bright, 3-row thick LEDs. Color: Amber
Visibility1.000 feet
Power consumptionUltra-low power consumption. Average <5 W
Flash rateDefault setting: 54 cycles/minute. Configurable

Radar detection capability

Doppler radarBidirectional, K-Band, 24.125 GHz (FCC part 15 compliant)
Accuracy+/- 1 Mph, 99% accuracy
Beam width33° horizontal and vertical
Speed detection9 – 160 Mph.
Detection range50 feet to 1.000 feet (configurable)

Casing

MaterialRobust anti-corrosive ABS injection molded resin
Size/Weight30″ (H) x 28″ (W) x 6″ (D) – Weight: 20lbs (without batteries)
Front faceCurved polycarbonate front face, 3M Diamond Grade Reflective Sheeting
Waterproof ratingNEMA 4R/IP 65
ColorUV treated light gray
Temperature resistance-22° F to +176° F (operational in extreme weather conditions)
User accessExternal access to the batteries, the control screen and the USB port. Secured by two locks

 Configuration of the Radar Speed Sign

EvocomSoftware for radar configuration + FREE updates
CommunicationUSB, Bluetooth®, EVO-MOBILE smartphone application and 4G (Optional)
ThresholdsSpeed (min, limit, max), anti-racing, flashing, color change (if activated)
Timer mode(School-zone mode) Alternative speed threshold: up to 2 settings/4 time slots per day
Stealth modeContinuous traffic data collection with blank display

Traffic Data Analysis

EvographSoftware for traffic data analysis + FREE updates and NO subscription fees ever
SpeedAverage and maximum speed, 85th percentile, distribution per speed group
CountEstimated vehicle count
TypeBidirectional, time-stamped data
Memory storageUp to 5 million vehicles
FormatCharts and graphs in Microsoft Excel and/or PDF form, for easy report printing

Power Supply

Batteries12 V/22 AH Weight for one battery: 13.22 lbs.
Solar panel 95 W solar panel
32″ x 27″ x 1.4″
w/ aluminum bracket mounting kit
ACCity lighting (available in certain states). Stationary, powered by battery charged through and dependent on city lighting
