EVOLIS Vision: LED Digital Speed Limit Sign

Join the movement to revolutionize road safety with our EVOLIS electronic speed radar signs! Featuring radar speed display and speed indicator sign technology, our digital speed limit signs ensure precision and compliance.

EVOLIS Vision helps reduce speed by 25%.

LED display: Promote safer driving and ensure an undeniable influence on passing drivers with our crystal-clear display utilizing long-range LEDs.
Data collection: Discover the optimal solution for tracking traffic and detecting speeding violations with our electronic radar speed signs. Manage traffic effortlessly with EVOLIS Vision.
Variable message: Keep drivers informed and educated about their speed instantly with real-time updates on our LED screens.

Do you have a question? Need a quote?

CLICK HERE TO RECEIVE A QUOTE NOW

EVOLIS Vision: The Electronic Radar Speed Sign in action

From highways to city streets, our digital speed signs keep drivers informed, making roads safer for all. By providing real-time speed displays, drivers are immediately alerted of their excess speeding.

Empower drivers in your community with an electronic Radar Speed Sign system offering an enduring solution for safer roads. EVOLIS Standard is available in a solar version for 100% autonomous, sustainable power supply.

Enhance road safety with the EVOLIS Vision digital speed limit sign, a neighborhood-approved model trusted by over 10,000 communities worldwide, with more than 30,000 installed units globally!

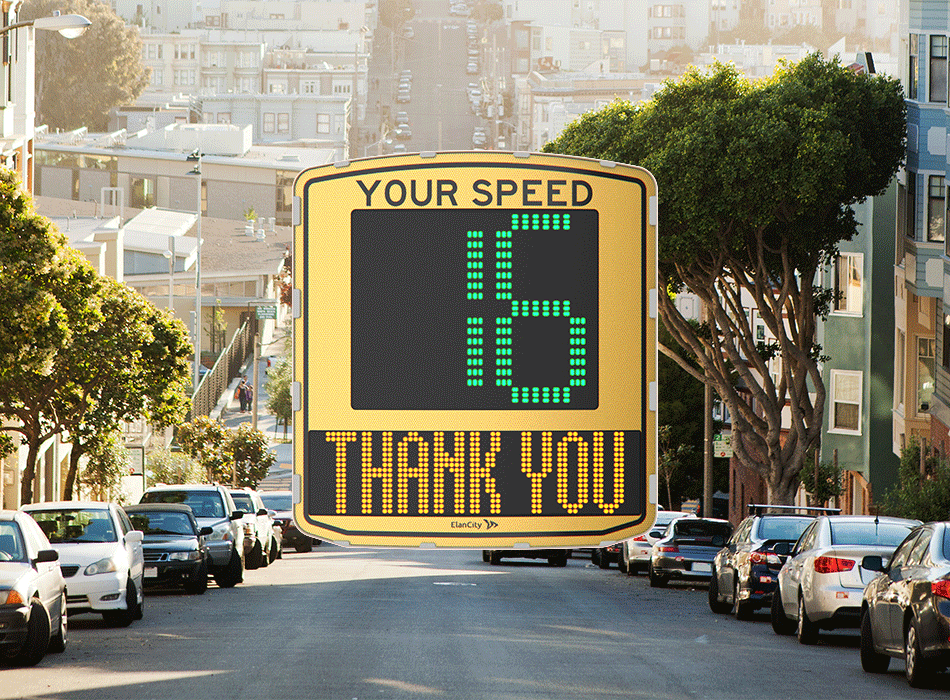

EVOLIS Vision: LED Digital Speed Limit Sign thank you message

EVOLIS Vision: LED radar speed sign slowdown message

Radar Speed Sign specifications

Display Specifications

Detection

Casing

Configuration

Traffic Data Analysis

Power Supply

Speed Display

Speed digits	Height 15″
“YOUR SPEED” legend	2.05″ Highway-Gothic font
LEDs	Ultra-bright, 3-row thick LEDs. Tri-color mode: Amber, Green and Red
Visibility	1.000 feet
Power consumption	Ultra-low power consumption. Average <5 W
Flash rate	Default setting: 54 cycles/minute. Configurable

Text Display

LEDs	Ultra-bright, Amber
Messages	Preprogrammed or entirely personalized
Font size/graphics	Choice of size and font, 1 or 2 lines of text

Radar detection capability

Doppler radar	Bidirectional, K-Band, 24.125 GHz (FCC part 15 compliant)
Accuracy	+/- 1 Mph, 99% accuracy
Beam width	33° horizontal and vertical
Speed detection	9 – 160 Mph.
Detection range	500 feet to 1.000 feet (configurable)

Casing

Material	Robust anti-corrosive ABS injection molded resin; curved polycarbonate front face
Size/Weight	30″ (H) x 28″ (W) x 6″ (D) – Weight: 20lbs (without batteries)
Waterproof rating	NEMA 4R/IP 65
Color	UV treated light gray (other colors available)
Temperature resistance	-22° F to +176° F (operational in extreme weather conditions)
User access	External access to the batteries, the control screen and the USB port. Secured by two locks

Configuration of the Radar Speed Sign

Evocom	Software for radar configuration + FREE updates
Communication	USB, Bluetooth®, EVOMOBILE smartphone application and 4G (Optional)
Thresholds	Speed (min, limit, max), anti-racing, flashing, color change (if activated)
Timer mode	(School-zone mode) Alternative speed threshold: up to 2 settings/4 time slots per day
Stealth mode	Continuous traffic data collection with blank display

Traffic Data Analysis

Evograph	Software for traffic data analysis + FREE updates and NO subscription fees ever
Speed	Average and maximum speed, 85th percentile, distribution per speed group
Count	Estimated vehicle count
Type	Bidirectional, time-stamped data
Memory storage	Up to 5 million vehicles
Format	Charts and graphs in Microsoft Excel and/or PDF form, for easy report printing

Power Supply

Batteries	12 V/22 AH Weight for one battery: 13.22 lbs.
Solar panel	95 W solar panel 32″ x 27″ x 1.4″ w/ aluminum bracket mounting kit
AC	City lighting (available in certain states). Stationary, powered by battery charged through and dependent on city lighting
